Grand Cherokee [“ZJ”] Project

Click on boxes below to view different phases of the build.



Components needed:


Hood louvers.png


GenRight Hood Louvers from 4WD.com. They have several other styles to choose from.



  • Grinder/cutting wheel

  • tape measure

  • Rivet gun

  • sharpie

  • painter's tape

  • blanket or tarp to cover engine bay



1 hour of time

Process:


Louvers 3.JPG

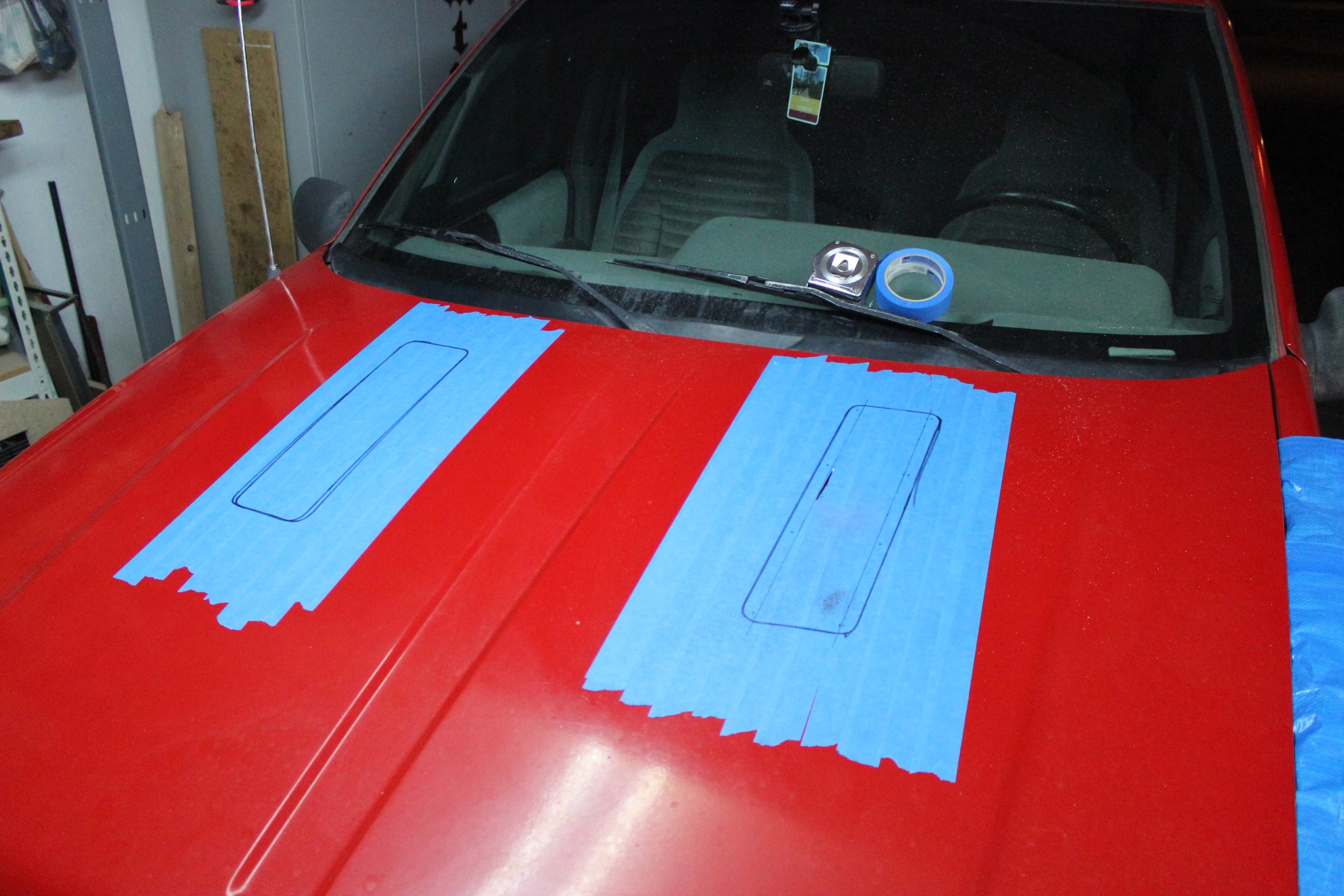

STEP 1 - Tape off area where you want to mount louvers: Use blue painters tape to tape off the general area where you will be putting your louvers. This will help prevent any damage to the edges of the area you cut with the grinder wheel. Depending on how many louvers you get, and the size, you'll have to pick flat spots on the hood. We decided to mount ours closer to the center and closer to the windshield.

STEP 2 - Use a sharpie to trace and mark off louvers: Using a measuring tape, place the louvers on the hood at an equal distance from the center of hood. You'll want to be as precise as possible here so that the finished product will look good. When you have determined where the louvers will be, trace around them on the tape. This WILL NOT be the area you cut, but rather where the edges of the louvers will sit. Leave about an inch to two inches around the edge for the rivets and draw another smaller rectangle inside. This will be the area you will cut.

Louvers 2.jpg

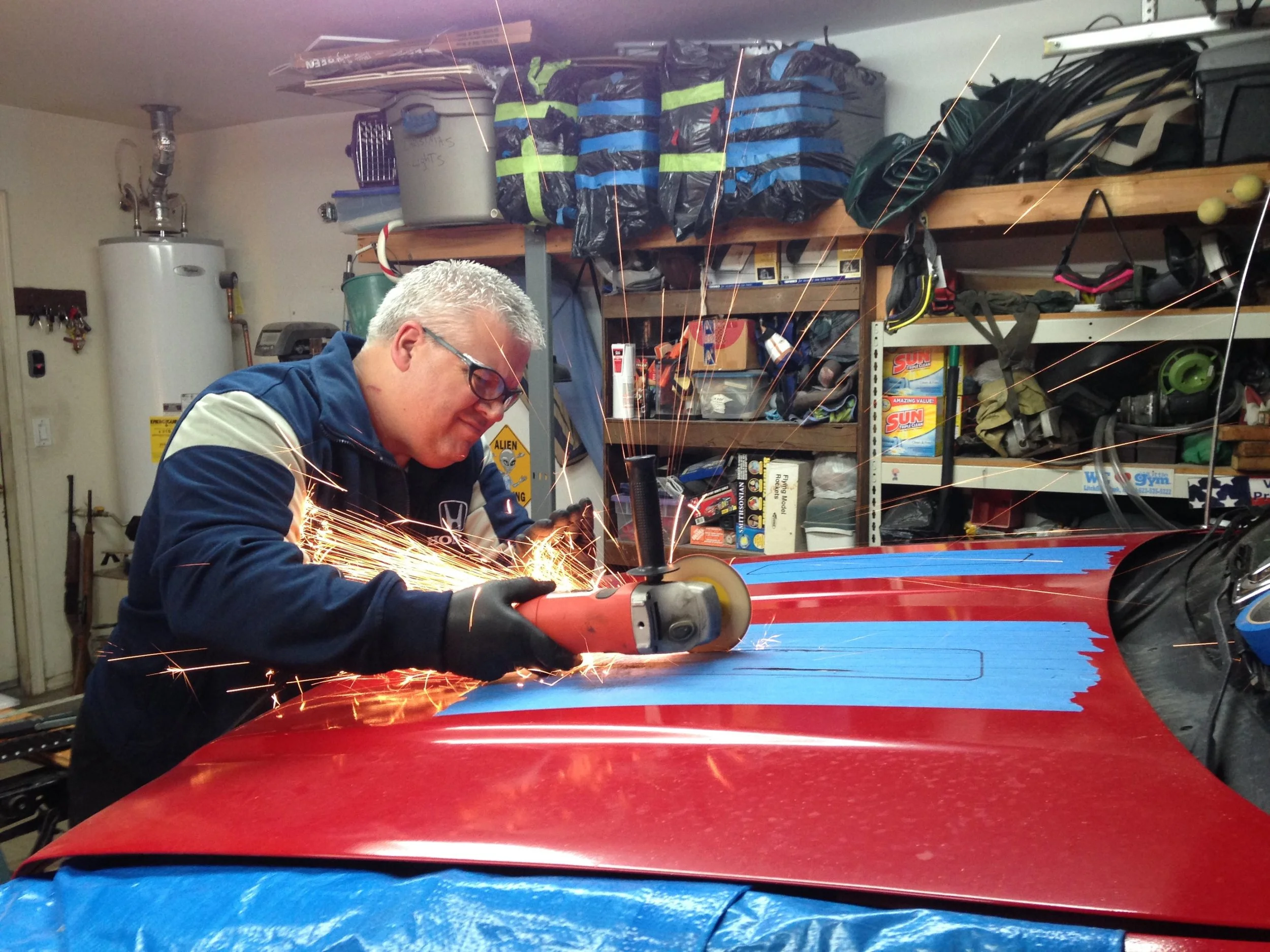

STEP 3 - Protect engine bay with tarp and make cuts: Open up the hood and place down a tarp or other fire-proof blanket. The last thing you want is sparks flying into the engine bay and igniting anything. It is also a good idea to remove the factory Jeep hood insulator that mounts underneath the hood. You'll have to cut this later to allow airflow, but remove it for now to prevent any damage. Using a cutting wheel, carefully cut along the smaller rectangle you marked off on the tape.

Louvers 1.JPG


STEP 4 - Remove tape and file edges of cut: After you make the cuts for the louvers, remove the tape. Use a file to remove the sharp edges in the metal.

Louvers 4.JPG
